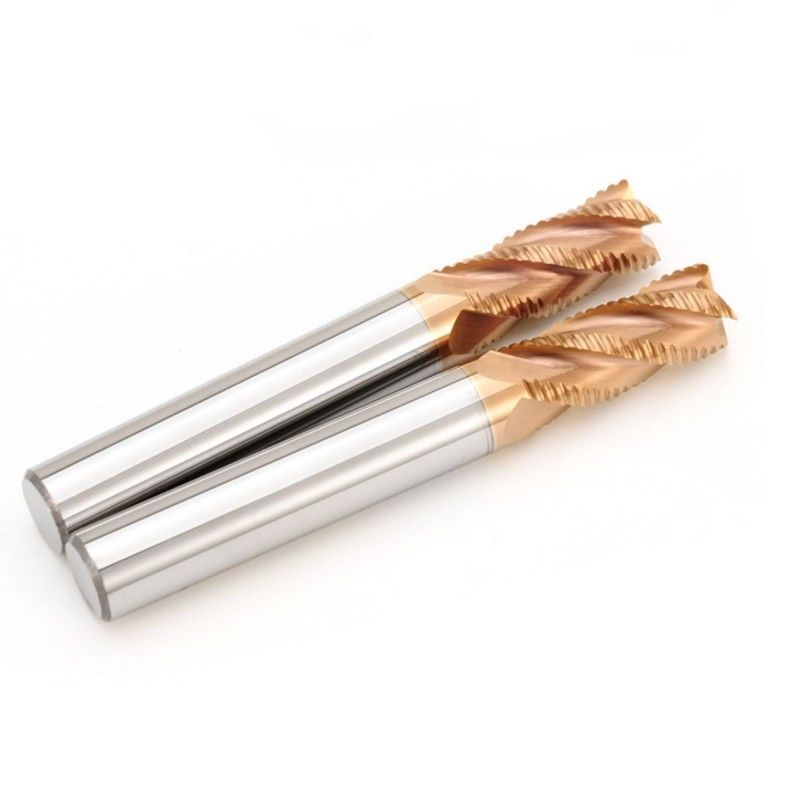

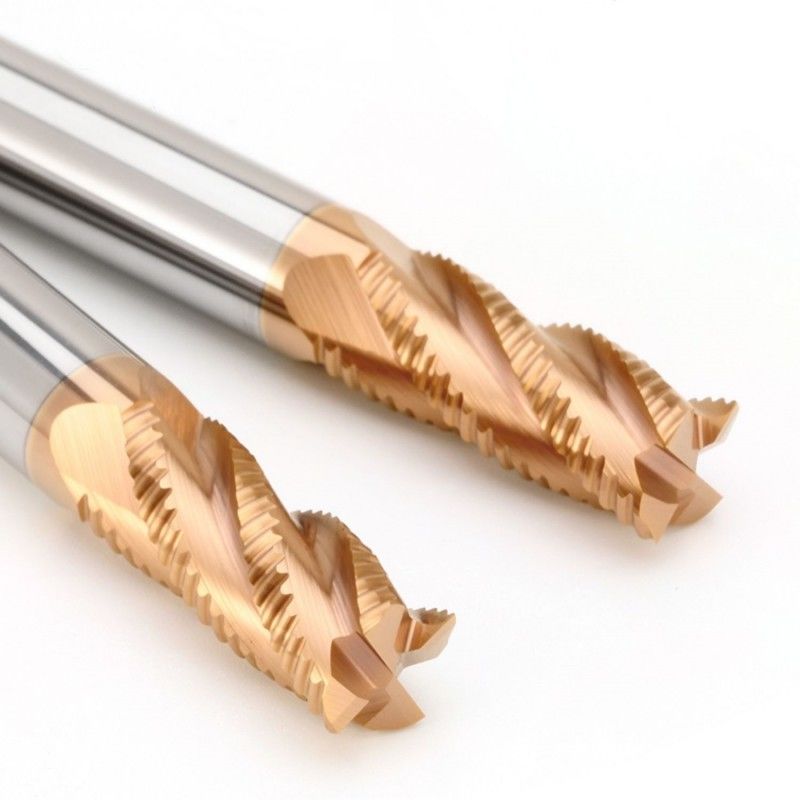

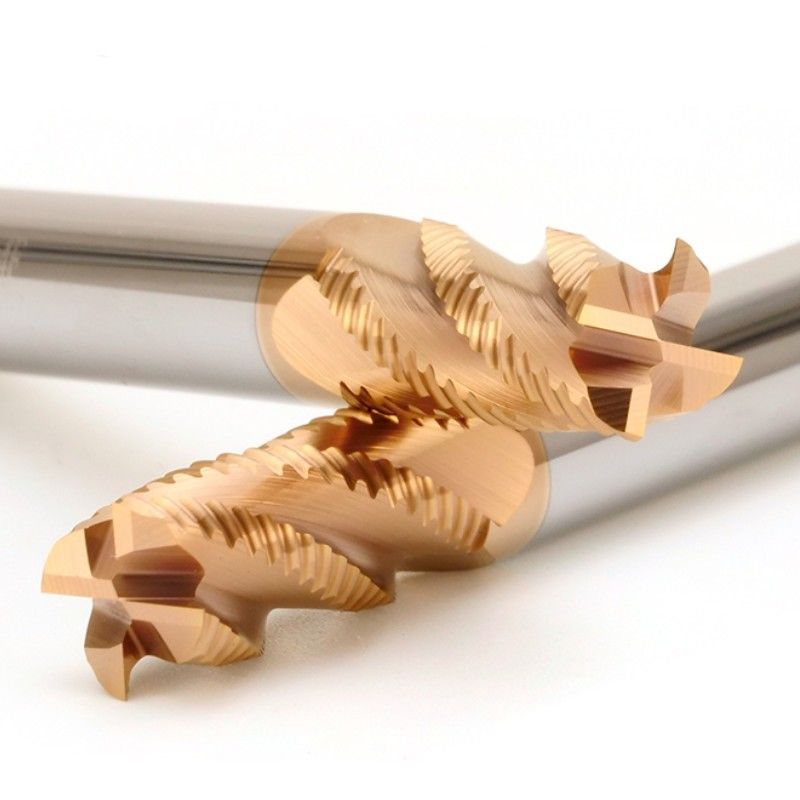

For Steel Use| Cutting Dia(d) |
Cutting |
Shank |
Full |
Flute(F) |
| 3.0 | 8 | 4 | 50 | 4 |
| 4.0 | 10 | 4 | 50 | 4 |
| 5.0 | 13 | 6 | 50 | 4 |
| 6.0 | 15 | 6 | 50 | 4 |
| 6.0 | 20 | 6 | 75 | 4 |
| 6.0 | 25 | 6 | 100 | 4 |
| 7.0 | 18 | 8 | 60 | 4 |
| 8.0 | 20 | 8 | 60 | 4 |
| 8.0 | 25 | 8 | 75 | 4 |
| 8.0 | 25 | 8 | 100 | 4 |
| 9.0 | 25 | 10 | 75 | 4 |
| 10.0 | 25 | 10 | 75 | 4 |
| 10.0 | 40 | 10 | 100 | 4 |
| 12.0 | 30 | 12 | 75 | 4 |
| 12.0 | 45 | 12 | 100 | 4 |
| 14.0 | 45 | 14 | 100 | 4 |
| 16.0 | 45 | 16 | 100 | 4 |
| 18.0 | 45 | 18 | 100 | 4 |
| 20.0 | 45 | 20 | 100 | 4 |
| 20.0 | 70 | 20 | 150 | 4 |

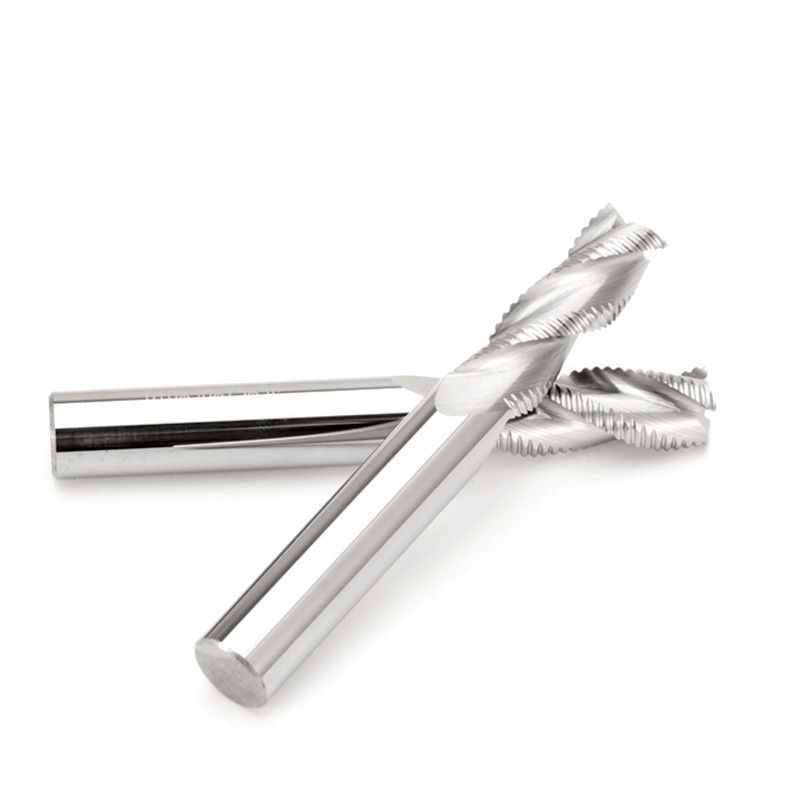

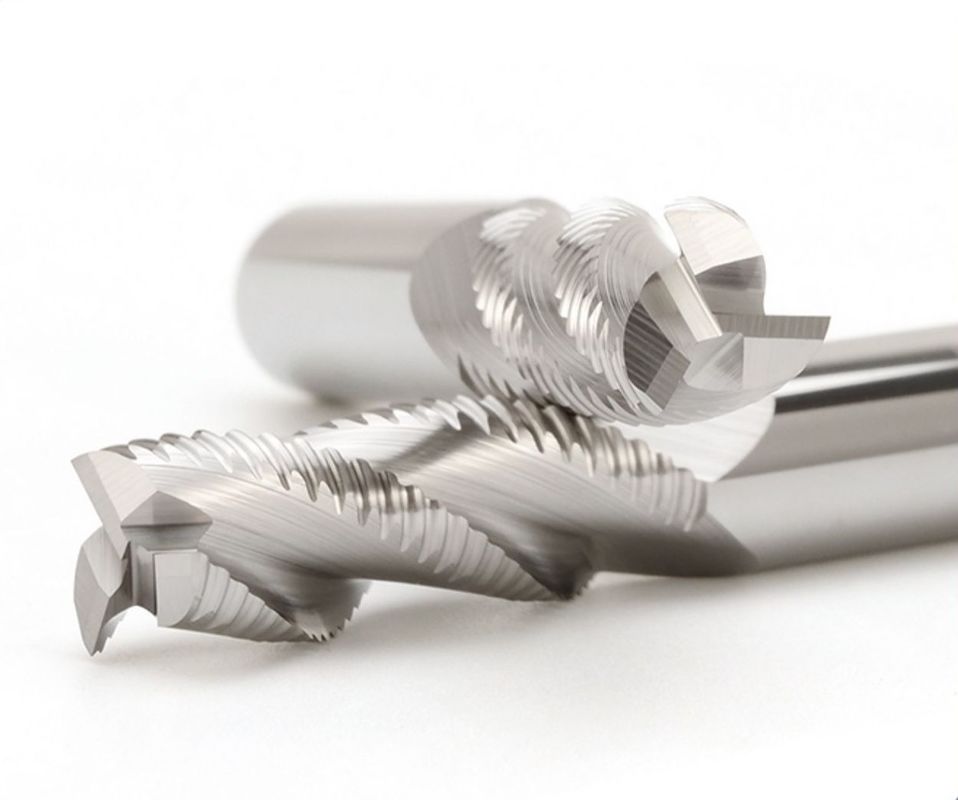

For Aluminum Use(No Coating)
| Cutting Dia(d) | Cutting Length(L1) |
Shank Dia(D) |
Full Length(L) |
Flute(F) |
| 3.0 | 8 | 4 | 50 | 4 |
| 4.0 | 10 | 4 | 50 | 4 |
| 5.0 | 13 | 6 | 50 | 4 |
| 6.0 | 15 | 6 | 50 | 4 |
| 6.0 | 20 | 6 | 75 | 4 |
| 6.0 | 25 | 6 | 100 | 4 |
| 7.0 | 18 | 8 | 60 | 4 |
| 8.0 | 20 | 8 | 60 | 4 |
| 8.0 | 25 | 8 | 75 | 4 |
| 8.0 | 25 | 8 | 100 | 4 |
| 9.0 | 25 | 10 | 75 | 4 |
| 10.0 | 25 | 10 | 75 | 4 |
| 10.0 | 40 | 10 | 100 | 4 |
| 12.0 | 45 | 12 | 100 | 4 |
| 14.0 | 45 | 14 | 100 | 4 |
| 16.0 | 45 | 16 | 100 | 4 |
| 18.0 | 48 | 18 | 100 | 4 |
| 20.0 | 70 | 20 | 150 | 4 |
| Parameter | Details |
|---|---|
| Coating | Nano Coating |
| Shank Diameter | D4-D20 |
| Overall Length | 50mm-100mm |
| Cutting Diameter | 3.0mm-20.0mm |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Flute Length | 8mm-45mm |
| Type | Roughing End Mill |
| Processing Material | alloy steel, cast iron, mold steel |
Carbide End Mill provides technical support and services, including:
